| Size(W*D*H) | FH-T3 integrated type | FH-T3 Floor-standing type | FH-T3 desktop type |
| W850*H2350*L1200 W850*H2350*L1500W850*H2350*L1800 | W850*H2350*L1200 W850*H2350*L1500W850*H2350*L1800 | W850*H1500*L1200 W850*H1500*L1500 W850*H1500*L1800 | |
| Exhaust air volume | 1036m³/h 1360m³/h 1684m³/h | 1036m³/h 1360m³/h 1684m³/h | 1152m³/h 1497m³/h 1843m³/h |
| Cabinet | 1.0mm cold-rolling steel | ||
| Lining board | 5mm compact laminate | ||
| Deflector | 5mm compact laminate | ||
| Operation Table Board | PP/Ceremic/Phenolic Resin/Phenolic Laminate board | ||
| LCD Operation panel | Can be set fast and slow free adjustment, can be adapted to most of the similar products on the market to support(Electric damper 6 seconds fast open)8 keys power/setup/lighting/standby/fan/damper and +/-keys | ||
| Electrical outlets(mm) | 4*10A 220V 5-hole splash proof sockets | ||
| Exhaust outlets(mm) | 250 | ||
| Sink | PP Sink/Epoxy Resin Sink/Stainless Steel Sink | ||
| Product name | Laboratory Fume hood | Usage | Gas circulation |
| material | steel | Structure | Knock down |
| application | Office Building, Hospital, Workshop | Worktop | Ceremic/Phenolic Resin/Phenolic Laminate board |
| design style | Modern | Size | 1200/1500/1800*850*2350mm |
| type | Laboratory Furniture | Color | white+grey |
| place of origin | Zhejiang, China | Certificate | ISO9001, ISO14001 |
| brand name | Rio Tinto | Advantage | Fireproof, Waterproof, Easy to Clean |
| model number | FH-T3 | general use | Commercial Furniture |
| Package | Wood case | MOQ | 1 SETS |
| Port | Ningbo/Shanghai | FOB price | 499-799 |
Laboratory fume hood is also known as fuming hood, fume cupboard and chemical fume hood. Jinhua Rio Tinto Steel Cabinet Co., Ltd. is one of the Quality Fume Hood manufacturers in China.
In laboratory environments, safety is non-negotiable. Rio Tinto fume hoods are engineered to deliver exceptional airflow performance, maximum user protection, and precision control ensuring hazardous fumes are safely contained and removed.

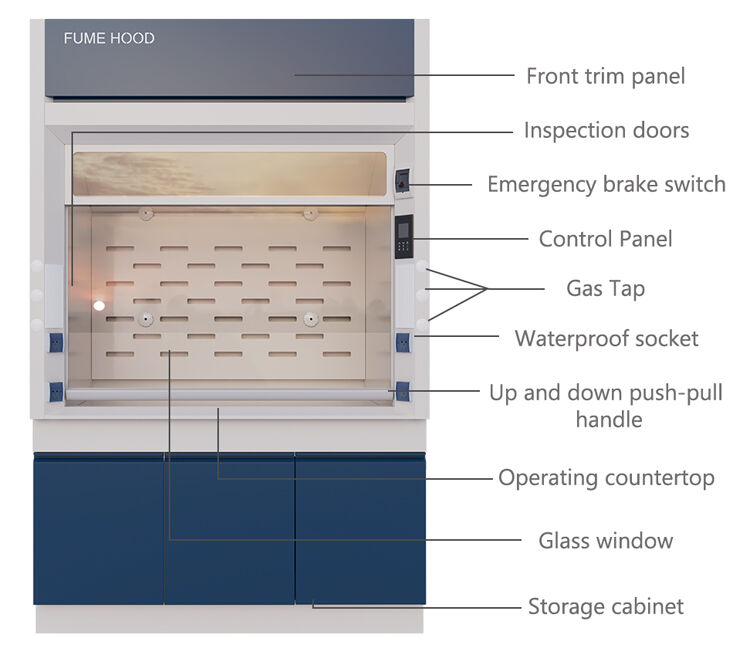

A fume hood is a type of local exhaust ventilation system inside the laboratory. It is a typical enclosed cabinet with sliding glass opening at front. Inside of the hood is aerodynamically designed that creates specific airflow pattern which ensures systematic and well directed extraction of heavy and lighter fumes or vapour generated in the fume hood. Inside working area of fume hood is mainly made of non-metallic & non-corrosive material as the chemical fumes are exposed to this area. MOC of the duct pipe is also recommended non-metallic & non-corrosive to ensure longevity of entire system.
Fume hoods are one of the most important safety equipment used to protect laboratory personnel form getting exposure to toxic gases, hazardous chemical fumes and harmful vapours generated during experiments performed inside fume hoods. Rio Tinto fume hoods are supported by properly designed fume exhaust duct system having efficient centrifugal blower. In order to compete budget and space the exhaust duct system can be clustered with more than one fume hoods too.Our team of experts calculates suitable duct size and required capacity of blower of exhaust duct system for every composition as per the need to achieve the best performance out of it. In case there is a high risk of fire, the fume hood should be equipped with fire extinguisher. It is made of powder coated steel, laminated wood and Stainless steel as per the need of your lab environment. We have verity of fume hoods for various laboratories like QC Lab, R & D Lab, Wet Lab, Hot lab or any other lab belonging to various industries such as Pharmaceutical, Healthcare, Industrial Research and development, clinical research, Bio-technology, Chemical, Petrochemicals, Cement, Engineering, Food & Beverages, Forensic Science, School & Colleges and Government sectors. Mainly we found three types of fume hoods as per its mounting style. 1) Integrated type 2) Floor-standing type and 3) Desktop type.
Q1:Are you a manufacturer?
Yes, We are a professional manufacturer with almost 20 years experience of all kinds of lab furniture.
Q2. Where is your factory located?
Our factory is located inJinhuacity, Zhejiang province, China.
Q3. Can you do OEM or ODM?
Yes, our factory offers OEM & ODM services. Professional design: our well-experienced designers will customize according to your specifications.
Q4. How long is the delivery time for bulk order?
Super fast! Our regulardelivery time will be 7-10 working after you confirm all detail information. To large quantities, 15-30 working days.
Q5. How do you ensure product quality?
Customer satisfaction is our priority. We will ensure the stability and excellence of our product by checking from the beginning raw-materials; during production processes and conduct a final quality check before packaging.
